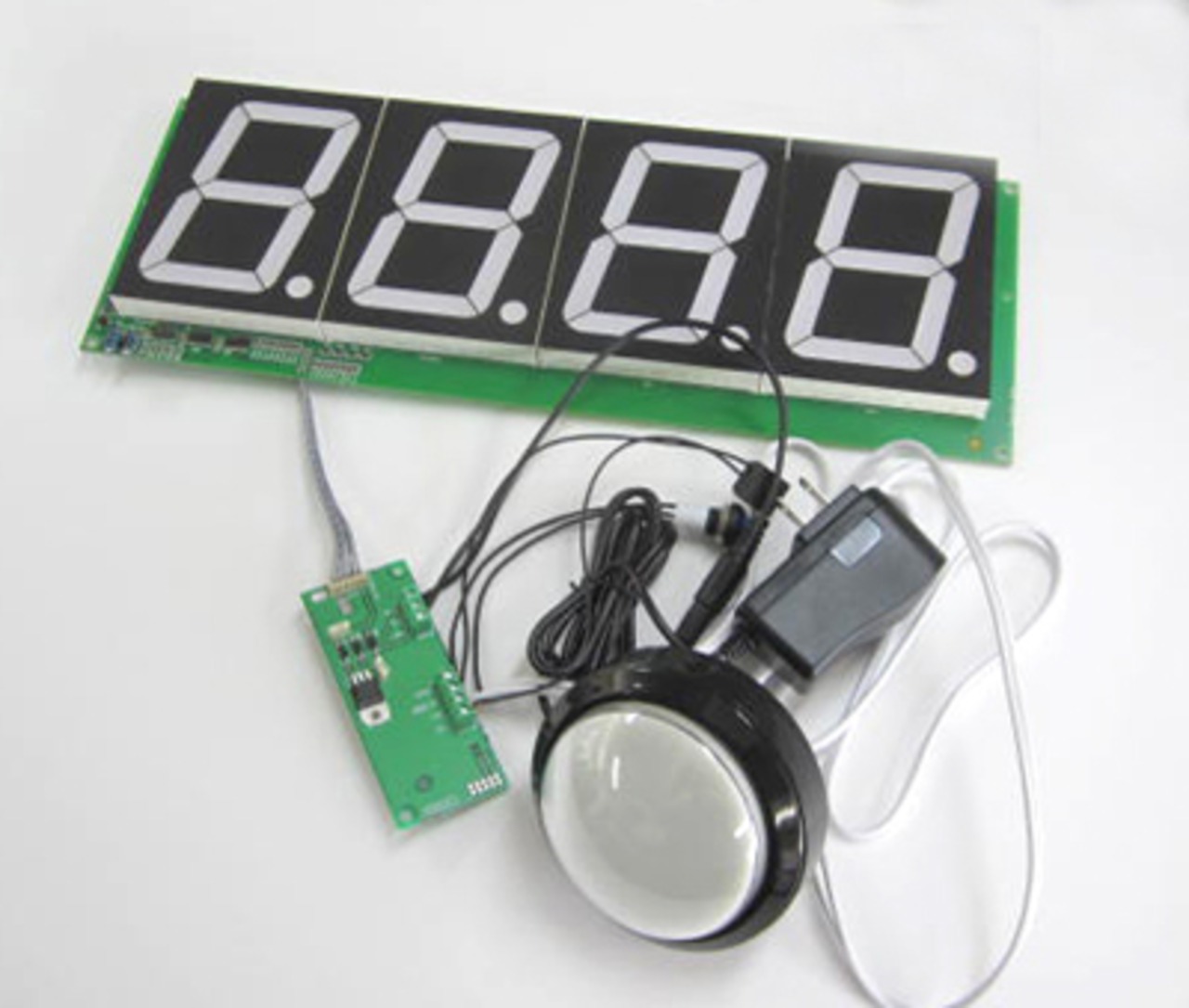

100mm大型7セグLED カウンターモジュール CD-3.4+電源+スイッチセット

JPY37,840(USD237.90)

残り1点

International shipping available

・展示会場などでお客様などへの表示用に

・白いスイッチを押すたびにカウントUP or Down
・CD-3.4に12V-1Aスイッチング電源+カウント用丸スイッチ+リセットスイッチ+UP/DOWN選択スイッチ付
・スイッチも光らせる場合は、12V電源から配線が必要

<カウンター仕様>
入力電圧:12VDC/24VDC
入力カウント:短絡/低電圧5VDC
Max.入力周波数:125Hz
カウント容量:9999
カウントUP/Down選択
デジタル表示寸法:100mm高さ
メイン基板寸法:約390x140mm
※ケーブルのカラーやスイッチは事情により変更されることがございますが、ケーブル長等ご希望あればお教えください。
56197
-----------------------------------------------------------------------------------------
100mm large 7-segment LED counter module CD-3.4 + power supply + switch set

- For displaying to customers at exhibition venues, etc.
- Counts up or down every time the white switch is pressed
- CD-3.4 with 12V-1A switching power supply + round switch for counting + reset switch + UP/DOWN selection switch
- If you want to light up the switch, you need to wire it from a 12V power supply

<Counter specifications>
Input voltage: 12VDC/24VDC
Input count: Short circuit/low voltage 5VDC
Max. input frequency: 125Hz
Count capacity: 9999
Count up/down selection
Digital display dimensions: 100mm height
Main board dimensions: Approx. 390x140mm
* The cable color and switch may change depending on circumstances, but please let us know if you have any requests for cable length, etc.

International shipping available

JPY37,840 (USD237.90)
