スピードコントローラ+5A電源付ハイパワーDCモーター 12V-4.9kg/cm-18800RPM

JPY14,960(USD94.31)

残り1点

International shipping available

・電源、コントローラ付ですぐに使える便利なセットです。

<モーター仕様>
無負荷電圧:12.0V
回転数(RPM):18800
電流(AMP):2.6
動作電圧範囲 (V):6-12
ストール時:
 トルク (kg/cm) 4.9
 電流(A) 92
Max 効率時:
 効率(%) 71
 電力(W) 107
 回転数 (RPM) 15520
 トルク(kg/cm) 0.67
 電流 (A) 12.8
寸法:
 直径(mm) 42
 長さ (mm) 78
 シャフト長 (mm) 19
 シャフト直径 (mm) 5.0
 マウントスレッド M4
<コントローラ/電源仕様>
コントローラMax容量:12Vdc/8A
電源入力:100~240Vac
電源出力:12vdc/5A Max
電源認証:PSE,CCC,UL,cUL,CE,K
※モーターの負荷をあげることによるコントローラや電源の損傷は、免責とさせていただきます。よろしくご了承ください。
55596
-------------------------------------------------------------------------------------------

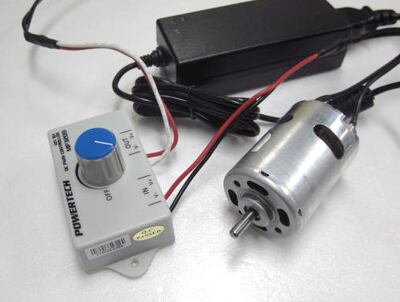

High power DC motor with speed controller + 5A power supply 12V-4.9kg/cm-18800RPM

- A convenient set that comes with a power supply and controller so you can use it right away.

<Motor specifications>
No-load voltage: 12.0V
Rotational speed (RPM): 18800
Current (AMP): 2.6
Operating voltage range (V): 6-12
At stall:
Torque (kg/cm): 4.9
Current (A): 92
At maximum efficiency:
Efficiency (%): 71
Power (W): 107
Rotational speed (RPM): 15520
Torque (kg/cm): 0.67
Current (A): 12.8
Dimensions:
Diameter (mm): 42
Length (mm): 78
Shaft length (mm): 19
Shaft diameter (mm): 5.0
Mounting thread: M4
<Controller/power supply specifications>
Maximum controller capacity: 12Vdc/8A
Power input: 100-240Vac
Power output: 12vdc/5A Max
Power supply certification: PSE
*We are not responsible for any damage to the controller or power supply caused by increasing the load on the motor. Thank you for your understanding.

International shipping available

JPY14,960 (USD94.31)
